Transport

Tonkin Gap Project and Associated Works

Location
Tonkin Highway, Western Australia
Value
$400 million
Client
Main Roads Western Australia
Status
Complete

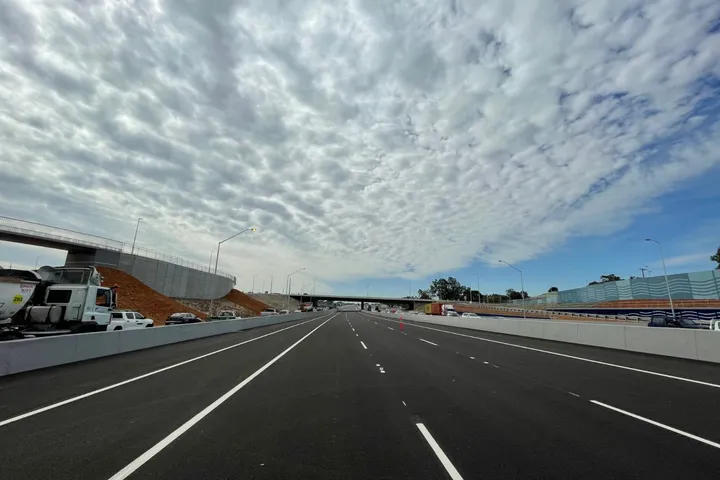

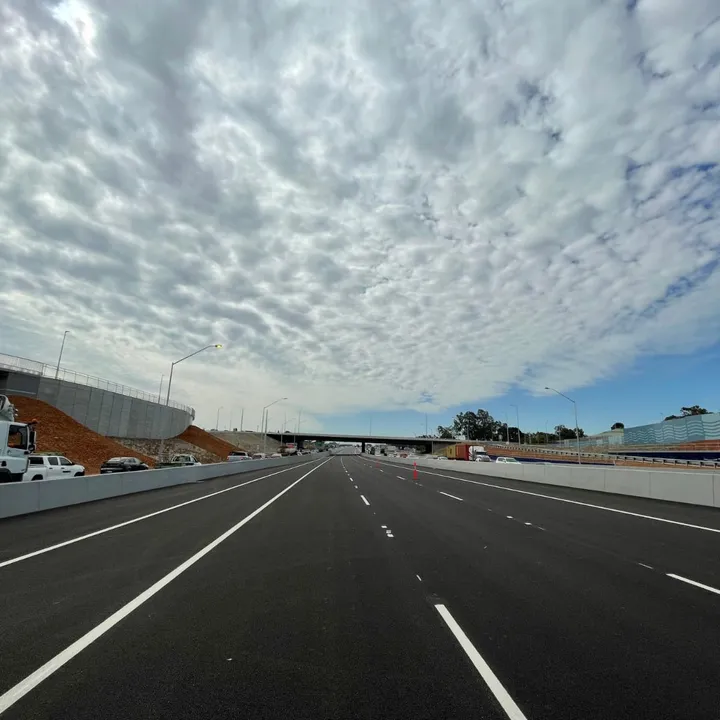

tonkin-gap-line-marking

About the project

As part of the Tonkin Gap Alliance, BMD in alliance with Main Roads Western Australia, Public Transport Authority, Georgiou Group, WA Limestone, BG&E and GHD - delivered the $400 million Tonkin Gap Project and Associated Works contract.

Contracted to remove a well-known bottleneck on Tonkin Highway, where it reduces from three lanes to two lanes in Bayswater and Redcliffe, the project helped deliver significantly reduced travel times and improved safety for road users, while simultaneously improving access and connectivity for road users, pedestrians and cyclists in the area.

The additional scope of works was provided to TGA to assist in track slab works at the northern and southern dive, platform footings and FRP wall works at Noranda and Morley stations, construction of the Morley multi-storey car park and intersection upgrade at Broun Avenue and Embleton Avenue as well as the installation of a large storm trap at the Noranda Station car park. In addition to this, a footbridge over Tonkin Highway in Malaga was also added to the Project’s scope of works.

Scope of works

Realignment and widening of Tonkin Highway

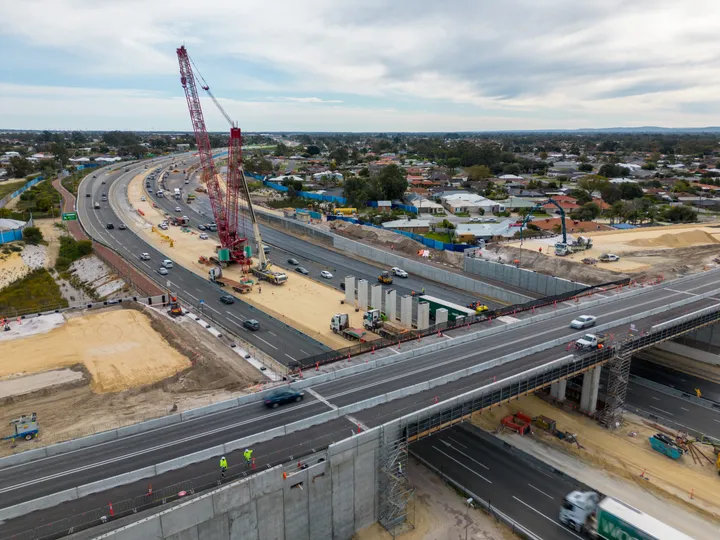

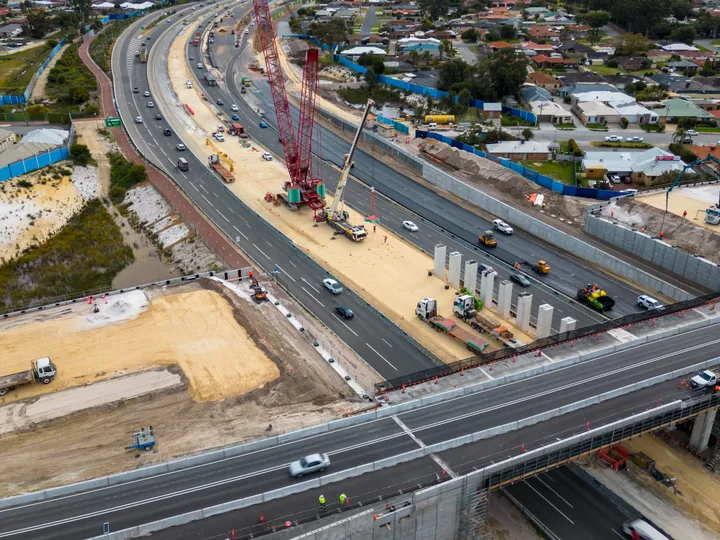

Construction of eight bridges and three footbridges, including over the Swan River and live rail

Upgrades to the Guildford Road and Great Eastern Highway interchanges

Construction of a Principal Shared Path crossing bridge, three underpasses, three footbridges and local connections for cyclists and pedestrians

Structures including retaining and noise walls

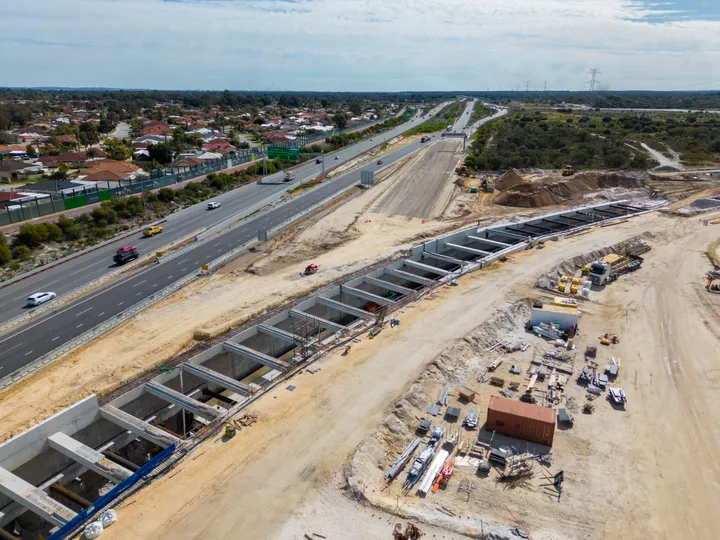

Two dive structures to facilitate the railway entering and exiting the Tonkin Highway median

Construction of two rail bridges

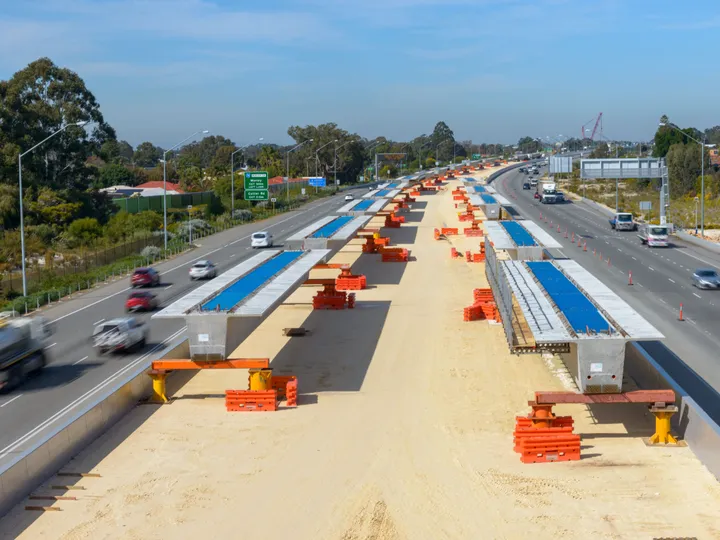

Centre median earthworks to Tonkin Highway up to underside of sub-ballast capping

Pier infills and pier deflection walls to safeguard people and traffic in the event of a train derailment

22 kilometres of slip form barrier works on Tonkin Highway

A new bus interchange and traffic bridge at Broun Avenue and deconstruction of the existing bridge

Lowering of Tonkin Highway to avoid the replacement of Stanton Road bridge.


Outcomes

Peak hour travel times for commuters have been reduced by 11 minutes

The project was awarded a Gold Infrastructure Sustainability Council (ISC) Design rating - highest score achieved to date in Australia by a V2.0 Project

Zero environmental impacts were recorded during the construction of the bridge over Swan River

The project recorded a spend of $29.5 million with Aboriginal owned businesses

The project welcomed a workforce of 30% new entrants into the construction industry.

Awards

Best Civil Engineering Works Award for projects exceeding $100 million - Master Builders Association of Western Australia - 2024

Civil Contractors Federation WA Industry and Training Awards - Sustainability Achievement Award 2024

Civil Contractors Federation WA Earth Awards - Project Value > $150 million category

Civil Contractors Federation National 2024 Excellence in Civil Construction Award - Project Value > $150 million category
